NS系列
Genergy NS UPS Series is designed for standby use with 5-year design life in float service. The series battery is featured of high consistency, excellent performance and reliable standby service life. It is widely applied in UPS/EPS, medical equipment, emergency light and security system.产品展示
- 1
- 2
- 3
- 4
系列特点
应用领域
产品列表
Key Features and Benefits
Advantages
- Low self-discharge
- Fully tank formed plates
- Low impurity electrolyte
- Spill proof / leak proof
- Multi-position usage
- ABS case and cover VO upon request
- Very high purity lead
Advantages
- High manufacture standard
- Excellent consistency
- Stable quality - quality pass rate is higher than 99.6%
- Design service life 5 years
- Low internal resistance to avoid overheating
- Low self-discharge rate
- Constant voltage charging is recommended
- Recommended 12V battery float charge voltage: 13.5 to 13.8V@20~25°C; cycle charge voltage 14.5 to 14.8V@20~25°C
- Temperature compensation -3mV/°C/cell
- Max. charge current 0.25C
Application
- UPS & EPS
- Power Utility
- Security Power Supply
- Electrical Toys
-
|
Battery Model |
Volts | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 10hr rate 1.75V/cell |
L | W | H | TH | ||||
| NS12-4.5 | 12 | 4.5 | 89 | 69 | 101 | 106 | 1.5 | T2 |
| NS12-5 | 12 | 5 | 89 | 69 | 101 | 106 | 1.6 | T2 |

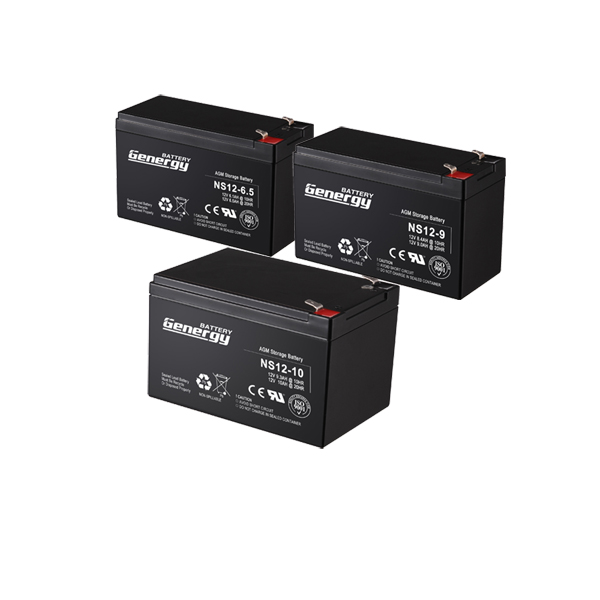

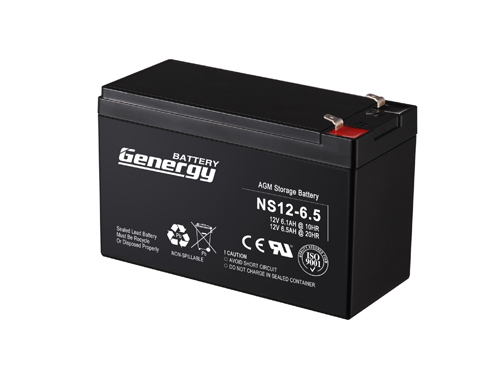

| NS12-6.5 | 12 | 6.5 | 151 | 65 | 95 | 99 | 2.0 | T2 |

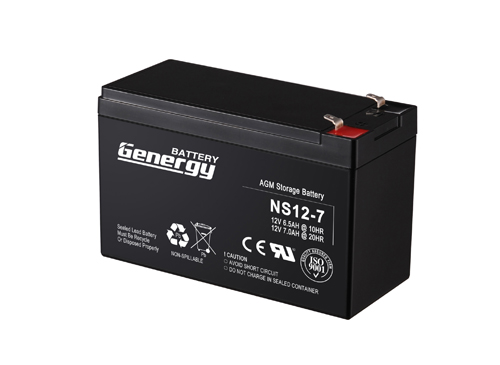

| NS12-7 | 12 | 7 | 151 | 65 | 95 | 99 | 2.2 | T2 |
| NS12-7.5 | 12 | 7.5 | 151 | 65 | 95 | 99 | 2.2 | T2 |
| NS12-8 | 12 | 8 | 151 | 65 | 95 | 99 | 2.3 | T2 |
| NS12-9 | 12 | 9 | 151 | 65 | 95 | 99 | 2.5 | T2 |

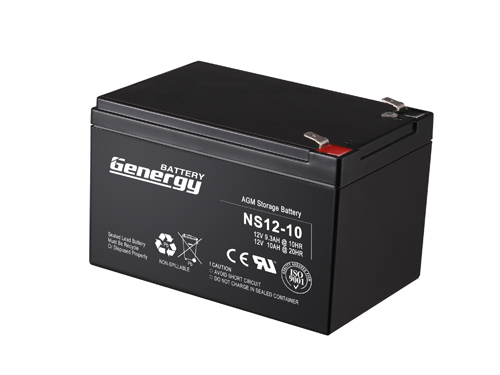

| NS12-10 | 12 | 10 | 151 | 98 | 95 | 99 | 3.2 | T2 |
| NS12-12 | 12 | 12 | 151 | 98 | 95 | 99 | 3.5 | T2 |
| NS12-17 | 12 | 17 | 180 | 76 | 167 | 167 | 5.2 | T3 |
| NS12-18 | 12 | 18 | 180 | 76 | 167 | 167 | 5.5 | T3 |
| NS12-24 | 12 | 24 | 165 | 125 | 174 | 174 | 8.3 | T3 |
| NS12-28 | 12 | 28 | 165 | 125 | 174 | 174 | 8.9 | T3 |
