NM系列
Genergy NM Series is designed for standby use with 10-year design life in float service. The series battery is featured of high consistency, excellent performance and reliable standby service life. It is widely applied in float service, UPS/EPS, medical equipment, telecom, photovoltaic, control system and security system.产品展示
- 1
- 2
- 3
- 4
系列特点
应用领域
产品列表
Key Features and Benefits
- Increase durability and deep cycle ability for heavy demand applications
- Low self-discharge
- Fully tank formed plates
- Low impurity electrolyte
- Spill proof / leak proof
- Multi-position usage
- ABS case and cover VO upon request
- Very high purity lead
Construction Highlights
- Positive plate: Pb-Ca alloy grid, and Cadmium free.
- Negative plate: Pb-Ca alloy grid, low water consumption rate.
- Separator: AGM (Absorbent Glass Mat), strong absorbability of electrolyte, no free acid
- Container and Cover: Strong ABS (Acrylonitrile Butadiene Styrene) plastic
- Safety Valve: durable EPDM rubber
Charging Voltage and Settings
- Constant voltage charging is recommended
- Recommended 12V battery float charge voltage: 13.5 to 13.8V@20~25°C; cycle charge voltage 14.5 to 14.8V@20~25°C
- Temperature compensation -3mV/°C/cell
- Max. charge current 0.25C
Application
- UPS & EPS
- Power Utility
- Telecommunications
- Security Power Supply
|
Battery Model |
Volts | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 10hr rate 1.75V/cell |
L | W | H | TH | ||||
| NM12-31 | 12 | 31 | 197 | 131 | 161 | 168 | 9.8 | T11 |
| NM12-35 | 12 | 35 | 197 | 131 | 161 | 168 | 10.6 | T11 |
| NM12-38 | 12 | 38 | 197 | 166 | 176 | 176 | 12.3 | T12 |
| NM12-40 | 12 | 40 | 197 | 166 | 176 | 176 | 12.6 | T12 |

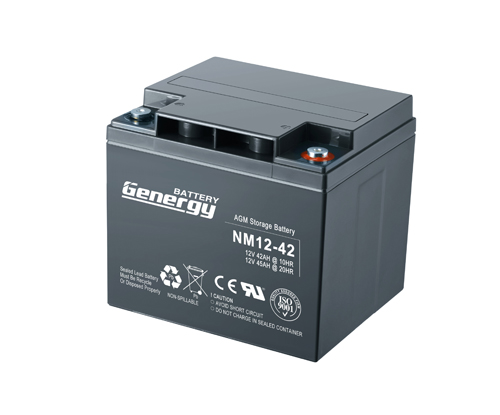

| NM12-42 | 12 | 42 | 197 | 166 | 176 | 176 | 13.2 | T12 |
| NM12-45S | 12 | 45 | 197 | 166 | 170 | 170 | 13.7 | T12 |
| NM12-45 | 12 | 45 | 197 | 166 | 176 | 176 | 14.1 | T12 |
| NM12-50 | 12 | 50 | 229 | 137 | 205 | 210 | 16.1 | T12 |
| NM12-55 | 12 | 55 | 229 | 137 | 205 | 210 | 17.5 | T12 |
| NM12-65S | 12 | 65 | 350 | 169 | 179 | 179 | 20.3 | T11 |
| NM12-65 | 12 | 65 | 327 | 172 | 173 | 178 | 20.1 | T13 |
| NM12-70 | 12 | 70 | 260 | 169 | 210 | 215 | 22.5 | T12 |

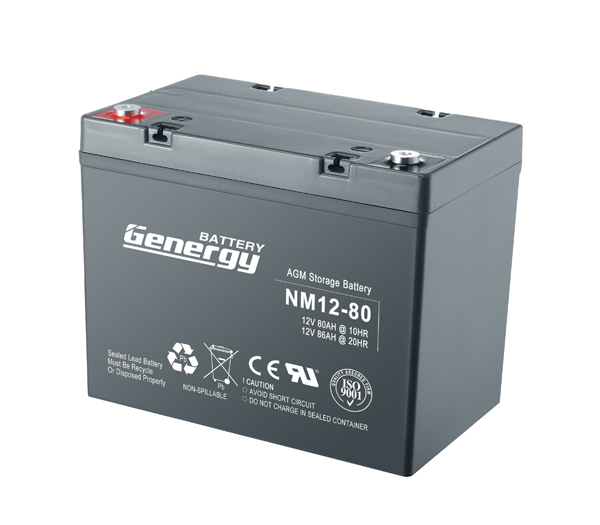

| NM12-80 | 12 | 80 | 260 | 169 | 210 | 215 | 23.5 | T12 |
| NM12-90 | 12 | 90 | 327 | 172 | 216 | 221 | 28.0 | T13 |
| NM12-95 | 12 | 95 | 304 | 174 | 210 | 215 | 28.3 | T12 |

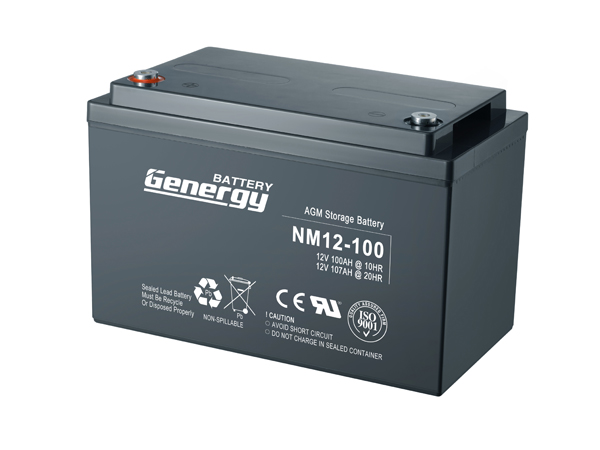

| NM12-100 | 12 | 100 | 327 | 172 | 216 | 221 | 29.4 | T13 |

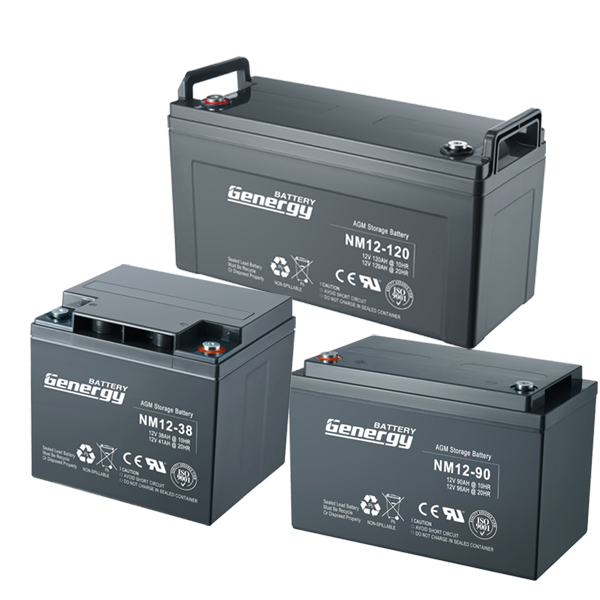

| NM12-120 | 12 | 120 | 407 | 173 | 233 | 233 | 34.8 | T13 |
| NM12-150 | 12 | 150 | 485 | 170 | 241 | 241 | 41.4 | T13 |
| NM12-200 | 12 | 200 | 496 | 252 | 208 | 208 | 208 | 208 |
