NH系列（高功率）

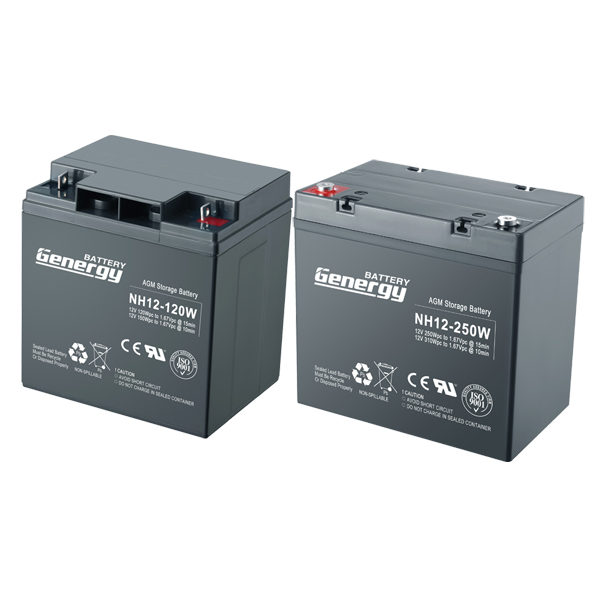

Genergy NH Series is primarily for all critical power and UPS applications. Designed with a high-density plate technology, the series battery is featured of high consistency, excellent performance and reliable standby service life. It is widely applied in UPS/EPS, high power backup system and emergency power supply.产品展示
- 1
- 2
- 3
- 4
系列特点
应用领域
产品列表
Key Features and Benefits
Advantages
Charging Voltage and Settings
- High rate output aimed at the UPS market
- Low self-discharge
- Fully tank formed plates
- Low impurity electrolyte
- Spill proof / leak proof
- Multi-position usage
- ABS case and cover VO upon request
- Very high purity lead
Advantages
- stable and high-power output
- Excellent consistency
- Design service life 10 year in floating condition
- Very low internal resistance
- Low self-discharge rate - energy saver
Charging Voltage and Settings
- Constant voltage charging is recommended for longer service life
- Recommended 12V battery float charge voltage: 13.5 to 13.8V@20~25°C; cycle charge voltage 14.5 to 14.8V@20~25°C
- Temperature compensation: -3mV/°C/cell
- Max. charging current 0.25C10A
- UPS/EPS (High rate)
- Emergency lighting
- High power backup supply
- Electric starting
- Emergency power supply
|
Battery Model |
Volts | Capacity (W/cell) | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 15min rate 1.67V/cell |
Discharge 20hr rate 1.75V/cell |
L | W | H | TH | ||||
| NH12-21W | 12 | 21 | 13 | 90 | 70 | 101 | 106 | 1.8 | T2 |
| NH12-24W | 12 | 24 | 14 | 151 | 51 | 94 | 99 | 1.85 | T2 |
| NH12-27W | 12 | 27 | 16 | 151 | 51 | 94 | 99 | 1.95 | T2 |
| NH12-33W | 12 | 33 | 20 | 151 | 65 | 94 | 99 | 2.28 | T2 |
| NH12-35W | 12 | 35 | 21 | 151 | 65 | 94 | 99 | 2.48 | T2 |
| NH12-37W | 12 | 37 | 22 | 151 | 65 | 94 | 99 | 2.5 | T2 |
| NH12-55W | 12 | 55 | 32 | 151 | 98 | 94 | 100 | 3.71 | T2 |
| NH12-77W | 12 | 77 | 45 | 181 | 77 | 167 | 167 | 5.53 | T3 |
| NH12-80W | 12 | 80 | 47 | 181 | 77 | 167 | 167 | 6.05 | T3 |
| NH12-92W | 12 | 92 | 54 | 181 | 77 | 167 | 167 | 6.2 | T3 |
| NH12-100W | 12 | 100 | 59 | 166 | 175 | 125 | 125 | 8.3 | T4 |

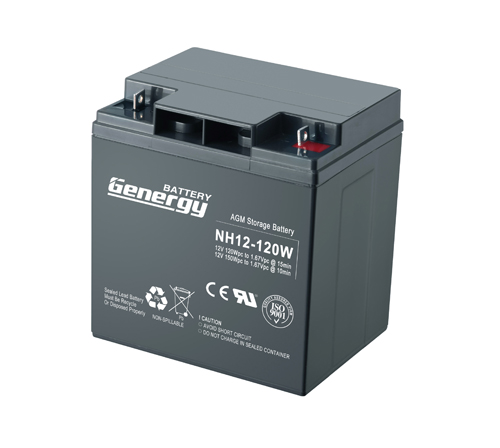

| NH12-120W | 12 | 120 | 70 | 165 | 125 | 175 | 175 | 8.8 | T3 |
| NH12-150W | 12 | 150 | 88 | 197 | 131 | 161 | 168 | 10.6 | T11 |
|
Battery Model |
Volts | Capacity (W/cell) | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 15min rate 1.67V/cell |
Discharge 10hr rate 1.75V/cell |
L | W | H | TH | ||||
| NH12-185W | 12 | 185 | 108 | 197 | 165 | 170 | 170 | 15 | T12 |

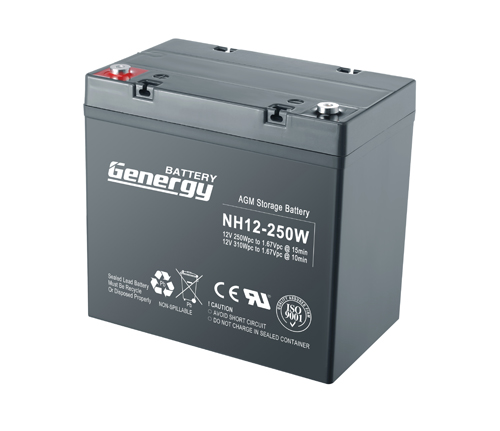

| NH12-250W | 12 | 250 | 146 | 229 | 138 | 208 | 212 | 17.9 | T12 |
| NH12-300W | 12 | 300 | 175 | 260 | 169 | 208 | 212 | 23.5 | T14 |
| NH12-350W | 12 | 350 | 204 | 306 | 174 | 208 | 212 | 27.5 | T13 |
| NH12-380 | 12 | 380 | 221 | 328 | 172 | 216 | 220 | 31.2 | T13 |
| NH12-420W | 12 | 420 | 244 | 328 | 172 | 216 | 220 | 31.8 | T13 |
| NH12-440W | 12 | 440 | 110 | 304 | 175 | 210 | 215 | 31.5 | T12 |
| NH12-520W | 12 | 520 | 303 | 342 | 172 | 283 | 288 | 43 | T12 |
| NH12-600W | 12 | 600 | 348 | 522 | 240 | 218 | 224 | 59.5 | T13 |
