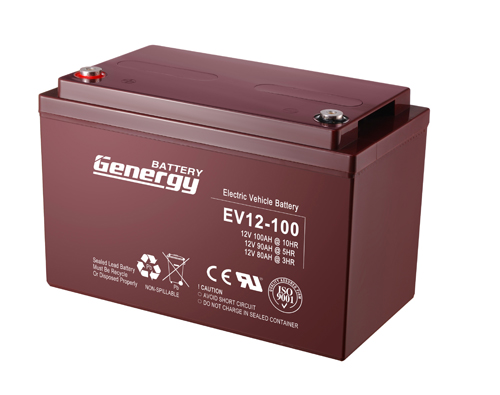

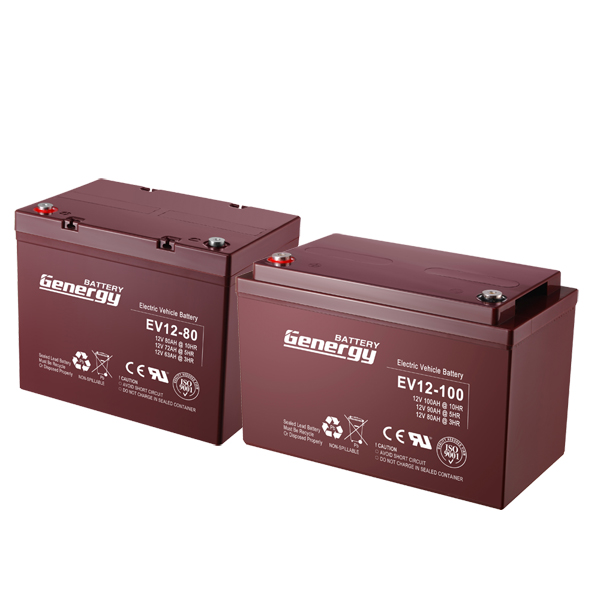

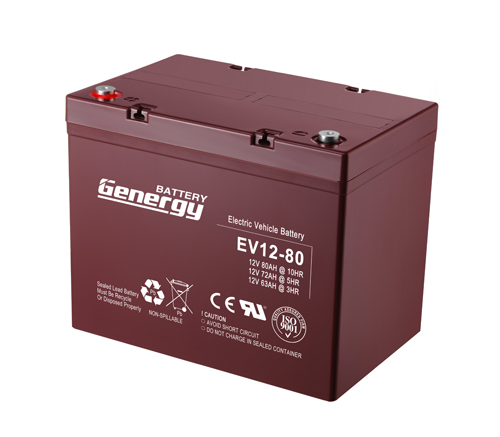

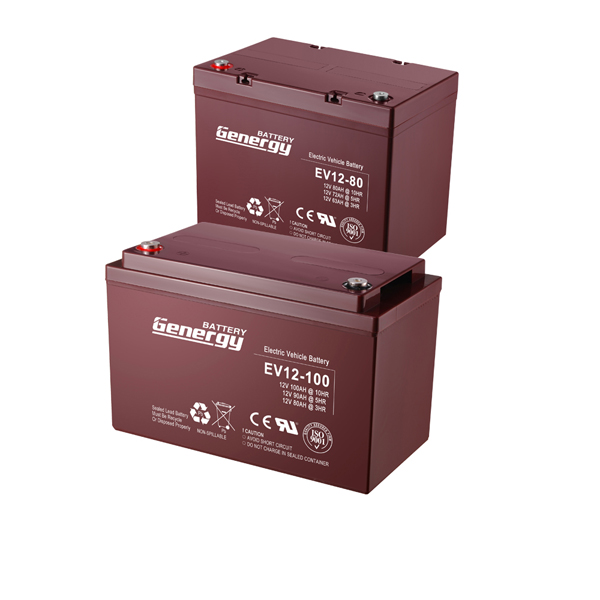

EV AGM系列

Genergy EV AGM Series is designed for tough applications and repeated deep discharging. It is superior with the long cycle life, large current discharge capability, high reliability and safety. The range is the definitive choice for golf cart, electric medical equipment, automated guided vehicles (AGV), aerial lifts, floor cleaning equipment, robotics applications.
询价

系列特点

应用领域

产品列表

Key Features and Benefits
  • Extra long cycle life and resistance to mechanical stress and the elements all in one battery.
  • Maintenance-free
  • Very high purity lead (purity rate 99.994%)
  • Traction heavy duty grid design gives consistent active material adhesion and corrosion resistance.
  • Fully tank formed plates for evenly formed and capacity matched plates.
  • Low impurity electrolyte
  • Recognized gas recombination efficiency greater than 99.9%
  • Flame arresting pressure regulated safety sealing valves for safety.
  •  Low self-discharge
  • Classified as non-spillable and not restricted for transportation by > Air (IATA/ICAO provision 67)
    > Surface (DOT-CFR-HMR49) > Water (per IMDG amendment 27)


Advantages

  • Outstanding consistency
  • Working temperature range -30~60°C
  • Design service life 10 years @20°C
  • Low self-discharging rate and can be stored for 9 months @20°C
  • Good charging acceptance capability at low temperature
  • Strong supplementary power after deep discharging, can be

Charging Voltage and Settings
  • The solar/wind energy system charging current is not stable, so the limited max. charging current is set at 0.3C around.
  • Recommended 12V battery charging voltage: 14.8V@20~25°C
  • Float voltage temperature compensation: -3mV/°C/cell
  • 12V battery recovery charging voltage settings: 12.8
Application
  • Golf Cart ○ Golf Trolley
  • Tour Bus ○ Sweeper
  • Electric Medical Equipments ○ Floor Cleaning Machines
  • Aerial and Fork Lifts ○ Marine and RV
Battery
Model
Volts Capacity - Amps to 1.75VPC Dimensions (mm) Weight
(Kg)
Terminal
Type
3 Hr 5 Hr 10 Hr L W H TH
EV6-115 6 92 104 115 195 170 207 213 18.5 T14
EV6-155 6 124 140 155 260 180 247 250 25.5 T14
EV6-160 6 128 144 160 306 168 220 226 27.5 T14
EV6-180 6 144 162 180 306 168 220 226 30 T14
EV6-190A 6 152 170 190 260 180 247 250 28.8 T14
EV6-190B 6 152 170 190 244 185 275 275 29.5 T14
EV6-210A 6 168 190 210 260 180 247 251 29.5 T14
EV6-210B 6 168 190 210 244 185 275 275 32 T14
EV6-230 6 184 207 230 260 180 268 273 38 T14
EV6-300 6 240 270 300 295 180 345 365 50 T14
EV8-150 8 120 135 150 260 180 266 270 31.5 T14
EV8-180 8 144 162 180 260 180 295 300 39 T14
EV12-7 12 5.6 6.3 7 151 65 94 100 2.68 T2
EV12-12 12 9.6 10.8 12 151 98 95 101 4.1 T2
EV12-20 12 16 18 20 181 77 167 167 6.9 T3
EV12-22 12 17.6 z gang  22 181 77 167 167 7.1 T3
EV12-24 12 18.4 20.7 23 166 175 125 125 8 T4
EV12-26 12 20.8 23.4 26 166 175 125 125 8.6 T4
EV12-33 12 26.4 29.7 33 194 132 170 170 10.5 T11
EV12-35 12 27.2 30.6 34 194 132 170 170 11.8 T11
EV12-38 12 30.4 34.2 38 197 165 170 170 13.4 T12
EV12-45 12 36 40.5 45 197 165 170 170 17.6 T12
EV12-50 12 40 45 50 229 138 208 212 18.2 T12
EV12-75 12 60 67.5 75 260 169 208 212 24.8 T12
EV12-76 12 60.8 68.4 76 350 167 179 179 26.6 T11
EV12-80 12 64 72 80 306 169 208 227 25.6 T12
EV12-90 12 72 81 90 306 169 208 212 29.5 T14
EV12-95 12 76 85.5 95 306 169 208 212 30.8 T14
EV12-100 12 80 90 100 328 171 214 220 31 T13
EV12-110 12 89 98 110 328 171 214 220 35.5 T13
EV12-135 12 108 122 135 342 172 283 288 45.5 T14
EV12-156
12 125 140 156 485 172 240 240 49 T13
EV12-160 12 128 144 160 552 110 288 288 49.5 T14
EV12-180 12 144 162 180 485 172 240 240 56 T14
EV12-190F 12 152 170 190 546 125 317 323 60 T14
EV12-190 12 152 170 190 522 238 218 222 61.5 T13
EV12-210 12 168 190 210 522 238 218 222 65.7 T13
