NML系列（长寿命）
Genergy NML Series is designed for solar and renewable energy system. The series is featured of its long service life. It is widely used in solar and wind power system, UPS and power utility.产品展示
- 1
- 2
- 3
- 4
系列特点
应用领域
产品列表
Key Features and Benefits
Advantages
Charging Voltage and Settings
- Increase durability and deep cycle ability for heavy demand applications
- Low self-discharge
- Low impurity electrolyte
- Spill proof / leak proof
- Multi-position usage
- ABS case and cover VO upon request
- Very high purity lead
Advantages
- Outstanding consistency
- Working temperature range -30~60°C
- Design service life 10 years @20°C
- Low self-discharging rate and can be stored for 9 months @20°C
- Good charging acceptance capability at low temperature
- Strong supplementary power after deep discharging, can be
Charging Voltage and Settings
- The solar/wind energy system charging current is not stable, so the limited max. charging current is set at 0.3C around.
- Recommended 12V battery charging voltage: 14.8V@20~25°C
- Float voltage temperature compensation: -3mV/°C/cell
- 12V battery recovery charging voltage settings: 12.8V
Application
- Solar energy system
- Wind Energy System
- Power Utility
- UPS/EPS
|
Battery Model |
Volts | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 10hr rate 1.75V/cell |
L | W | H | TH | ||||
| NM12-31L | 12 | 31 | 197 | 131 | 161 | 168 | 9.8 | T11 |
| NM12-35L | 12 | 35 | 197 | 131 | 161 | 168 | 10.6 | T11 |
| NM12-38L | 12 | 38 | 197 | 166 | 176 | 176 | 12.3 | T12 |
| NM12-40L | 12 | 40 | 197 | 166 | 176 | 176 | 12.6 | T12 |
| NM12-42L | 12 | 42 | 197 | 166 | 176 | 176 | 13.1 | T12 |
| NM12-45L | 12 | 45 | 197 | 166 | 176 | 176 | 13.4 | T12 |

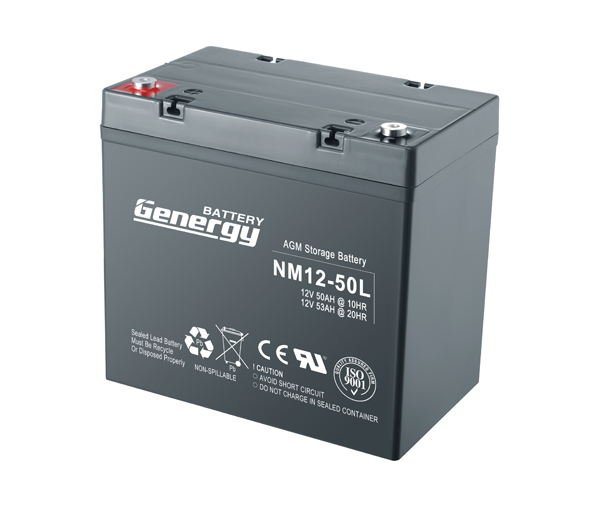

| NM12-50L | 12 | 50 | 229 | 137 | 205 | 210 | 17.8 | T12 |
| NM12-65L | 12 | 65 | 327 | 172 | 173 | 178 | 20.6 | T13 |
| NM12-70L | 12 | 70 | 260 | 169 | 210 | 215 | 22.5 | T12 |
| NM12-80L | 12 | 80 | 260 | 169 | 210 | 215 | 24.5 | T12 |
| NM12-90L | 12 | 90 | 327 | 172 | 216 | 221 | 28.0 | T13 |

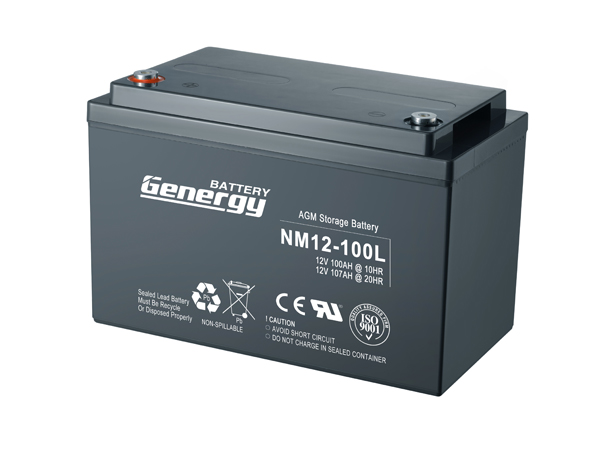

| NM12-100L | 12 | 100 | 327 | 172 | 216 | 221 | 31.2 | T13 |

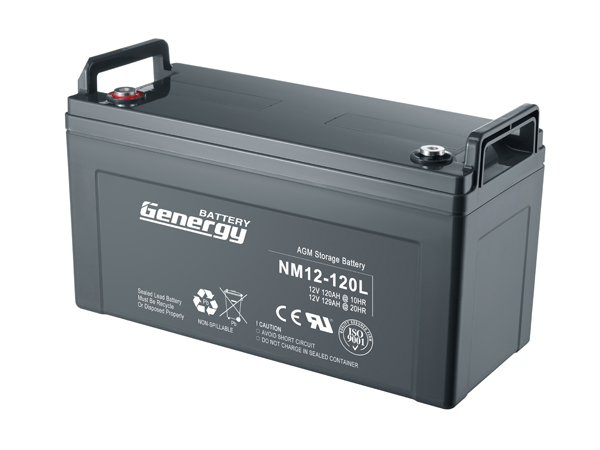

| NM12-120L | 12 | 120 | 407 | 173 | 233 | 233 | 36.5 | T13 |
| NM12-150L | 12 | 150 | 485 | 170 | 241 | 241 | 45.3 | T13 |
| NM12-200L | 12 | 200 | 522 | 240 | 219 | 224 | 61.5 | T13 |
| NM12-220L | 12 | 220 | 522 | 269 | 220 | 225 | 64.5 | T13 |
