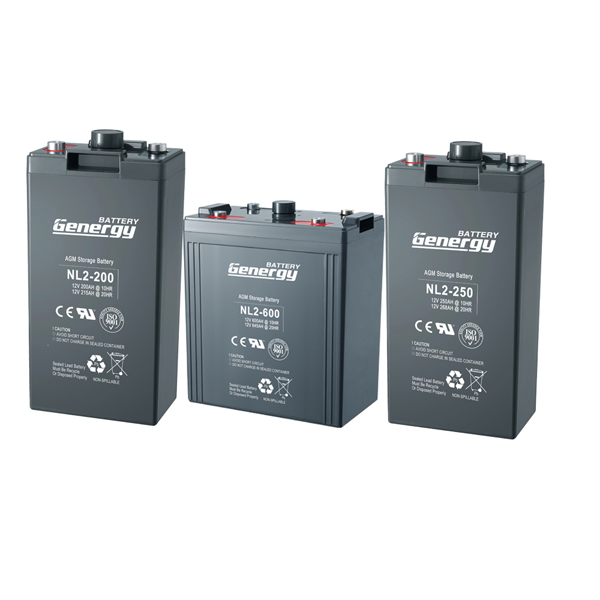

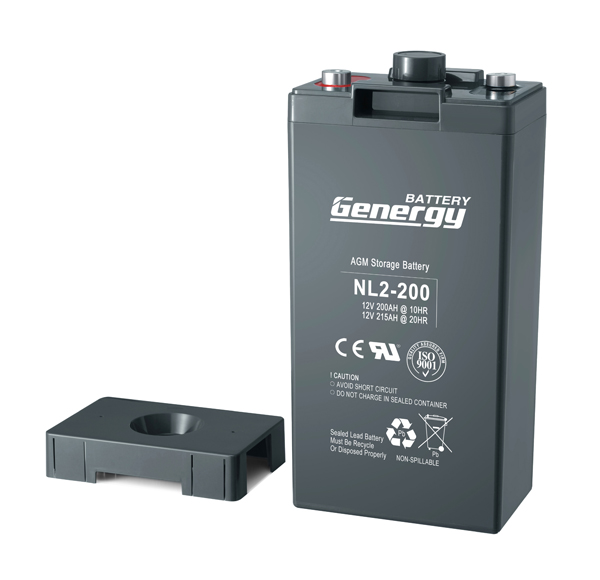

NL系列（2V）

Genergy NL Series is designed for standby use with 15-year design life in float service. The series battery is featured of high consistency, excellent performance and reliable standby service life. It is widely applied in Telecoms, Power Utility, Renewables, UPS/EPS, and medical equipment.

询价

系列特点

应用领域

产品列表

Key Features and Benefits

Valve regulated maximum internal pressure 2.5 PSI
Increase durability and deep cycle ability for heavy demand applications
Low self-discharge
Fully tank formed plates
Low inpurity electrolyte
Spill proof / leak proof
Multi-position usage
ABS case and cover VO upon request
Very high purity lead

Advantages

High manufacture standard
Excellent consistency
Stable quality - quality pass rate is higher than 99.8%
Working temperature range -18~55°C
Design service life 15 years
Low internal resistance to avoid overheating
Low self-discharge rate

Charging Voltage and Settings

Constant voltage charging is recommended
Recommended float charge voltage: 2.25~2.30V@20~25°C
Cyclic application charge voltage: 2.4~2.5@20~25°C
Float voltage temperature compensation: -3mV/°C/cell
Max. charge current 0.25C

Application

Telecommunications
UPS & EPS
Data center
Solar Energy System
Power Utility

Battery Model	Volts	Capacity (Ah)	Dimensions (mm)				Weight (Kg)	Terminal Type
Battery Model	Volts	Discharge 10hr rate 1.75V/cell	L	W	H	TH	Weight (Kg)	Terminal Type
NL2-200	2	200	173	111	330	364	13.2	T15
NL2-200B	2	200	170	106	312	342	13.6	T15
NL2-250	2	250	173	111	330	364	16.8	T15
NL2-250B	2	250	170	106	312	342	17.3	T15
NL2-300	2	300	170	150	312	342	18.5	T15
NL2-400	2	400	196	171	312	342	25.5	T15
NL2-500	2	500	241	171	312	342	32	T15
NL2-600	2	600	302	175	330	364	37	T15
NL2-600B	2	600	285	171	312	342	37	T15
NL2-800	2	800	383	171	312	342	52	T15
NL2-1000	2	1000	471	171	312	342	62	T15
NL2-1500	2	1500	355	337	312	342	94	T15
NL2-2000	2	2000	476	337	312	365	123	T15
NL2-3000	2	3000	696	340	312	365	190	T15
