NSL Series (7Ah - 28Ah)
Genergy NSL UPS Series is designed for standby use with 10-year design life in float service. The series battery is featured of high consistency, excellent performance and reliable standby service life. It is widely applied in UPS/EPS, medical equipment, emergency light and security system.
Standby Applications
Home >
PRODUCT >
Standby Applications
Key Features and Benefits
Applications
Product Specifications
Key Features and Benefits
- Long service life
- Fully tank formed plates
- Low impurity electrolyte
- Spill proof / leak proof
- Multi-position usage
- ABS case and cover VO upon request
- Very high purity lead
Application
- UPS & EPS
- Power Utility
- Security Power Supply
- Electrical Toys
|
Battery Model |
Volts | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 10hr rate 1.75V/cell |
L | W | H | TH | ||||
| NS12-7L | 12 | 7 | 151 | 65 | 95 | 100 | 2.25 | T2 |
| NS12-8L | 12 | 8 | 151 | 65 | 95 | 100 | 2.41 | T2 |

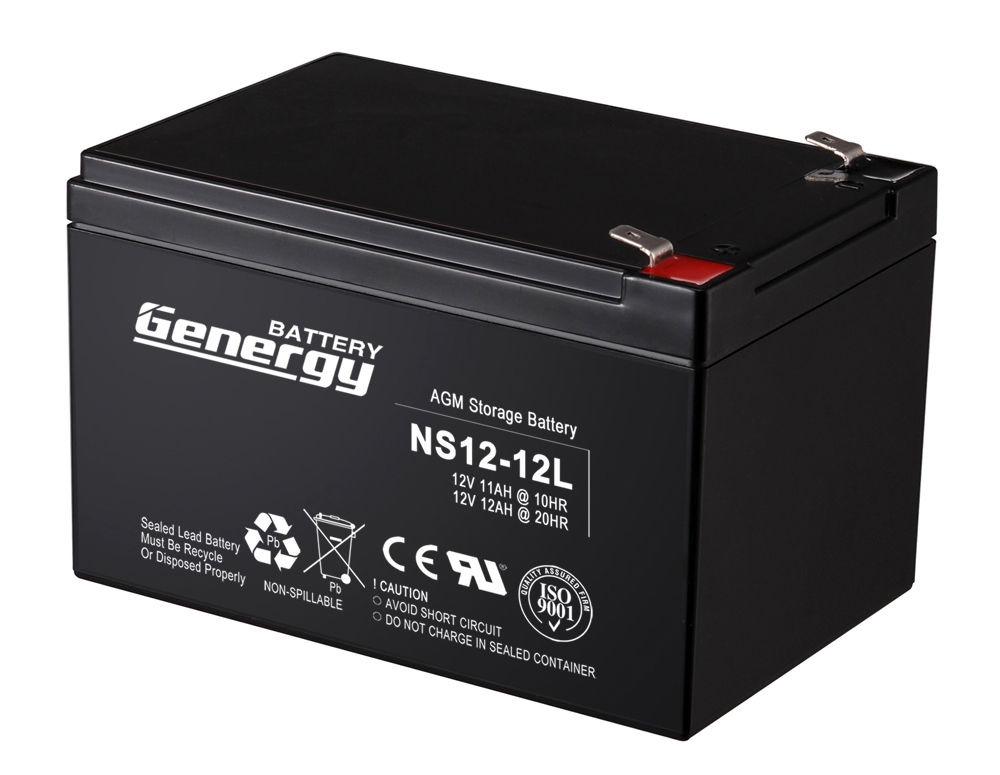

| NS12-12L | 12 | 12 | 151 | 98.5 | 95 | 100 | 3.80 | T2 |
| NS12-17L | 12 | 17 | 181 | 77 | 167 | 172 | 6.10 | T3 |
| NS12-24L | 12 | 24 | 175 | 166 | 126 | 126 | 7.85 | T4 |
| NS12-28L | 12 | 28 | 175 | 166 | 126 | 125 | 8.30 | T4 |
