NML Series (Long Life)
Genergy NML Series is designed for solar and renewable energy system. The series is featured of its long service life. It is widely used in solar and wind power system, UPS and power utility.
Renewable/Solar Applications
Home >
PRODUCT >
Renewable/Solar Applications
- 1
- 2
- 3
- 4
Key Features and Benefits
Applications
Product Specifications
Key Features and Benefits
- Increase durability and deep cycle ability for heavy demand applications
- Low self-discharge
- Low impurity electrolyte
- Spill proof / leak proof
- Multi-position usage
- ABS case and cover VO upon request
- Very high purity lead
Application
- Solar energy system
- Wind Energy System
- Power Utility
- UPS/EPS
|
Battery Model |
Volts | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 10hr rate 1.75V/cell |
L | W | H | TH | ||||
| NM12-33L | 12 | 33 | 197 | 131 | 161 | 168 | 10.0 | T11 |
| NM12-38L | 12 | 38 | 196 | 166 | 176 | 176 | 12.1 | T12 |
| NM12-40L | 12 | 40 | 196 | 166 | 176 | 176 | 12.5 | T12 |
| NM12-45L | 12 | 45 | 197 | 166 | 176 | 176 | 14.0 | T12 |

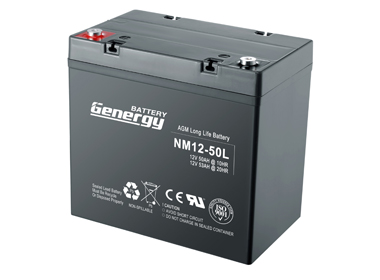

| NM12-50L | 12 | 50 | 229 | 137 | 205 | 210 | 16.0 | T12 |
| NM12-55L | 12 | 55 | 229 | 139 | 205 | 210 | 16.5 | T12 |
| NM12-65L | 12 | 65 | 327 | 173 | 167 | 172 | 20.4 | T13 |
| NM12-70L | 12 | 70 | 260 | 169 | 210 | 215 | 22.6 | T12 |
| NM12-80L | 12 | 80 | 260 | 169 | 210 | 215 | 23.5 | T12 |
| NM12-90L | 12 | 90 | 304 | 175 | 210 | 215 | 27.5 | T13 |
| NM12-100L | 12 | 100 | 330 | 172 | 216 | 221 | 30.5 | T13 |

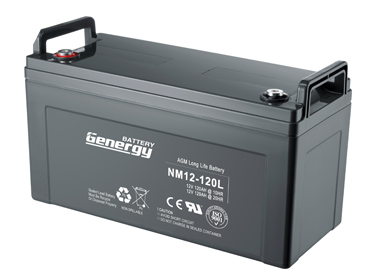

| NM12-120L | 12 | 120 | 407 | 173 | 208 | 237 | 34.5 | T13 |
| NM12-135L | 12 | 135 | 341 | 171 | 281 | 286 | 41.0 | T14 |
| NM12-150L | 12 | 150 | 485 | 170 | 241 | 241 | 44.3 | T13 |

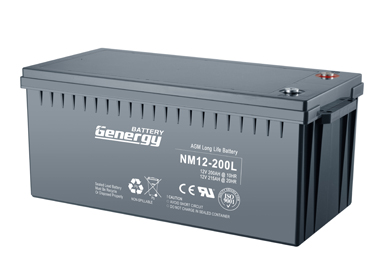

| NM12-200L | 12 | 200 | 522 | 240 | 219 | 224 | 60.3 | T13 |
| NM12-220L | 12 | 220 | 522 | 240 | 220 | 225 | 61.5 | T13 |
| NM12-230L | 12 | 230 | 522 | 240 | 219 | 224 | 64.5 | T13 |
| NM12-250L | 12 | 250 | 521 | 269 | 221 | 226 | 74.5 | T12/T14 |
