NH Series (High Power)
Genergy NH Series is primarily for all critical power and UPS applications. Designed with a high-density plate technology, the series battery is featured of high consistency, excellent performance and reliable standby service life. It is widely applied in UPS/EPS, high power backup system and emergency power supply.
Standby Applications
Home >
PRODUCT >
Standby Applications
- 1
- 2
- 3
- 4
Key Features and Benefits
Applications
Product Specifications
Key Features and Benefits
- High rate output aimed at the UPS market
- Low self-discharge
- Fully tank formed plates
- Low impurity electrolyte
- Spill proof / leak proof
- Multi-position usage
- ABS case and cover VO upon request
- Very high purity lead
- UPS/EPS (High rate)
- Emergency lighting
- High power backup supply
- Electric starting
- Emergency power supply
|
Battery Model |
Volts | Capacity (W/cell) | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 15min rate 1.67V/cell |
Discharge 20hr rate 1.75V/cell |
L | W | H | TH | ||||
| NH12-24W | 12 | 24 | 6.5 | 151 | 51 | 94 | 99 | 1.83 | T2 |
| NH12-33W | 12 | 33 | 7.8 | 151 | 65 | 94 | 99 | 2.35 | T2 |

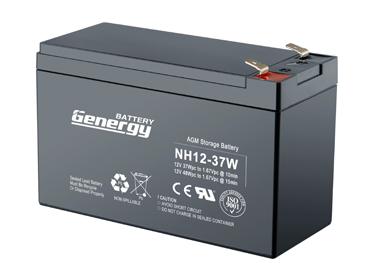

| NH12-37W | 12 | 37 | 9.0 | 151 | 65 | 94 | 99 | 2.58 | T2 |
| NH12-55W | 12 | 55 | 14 | 151 | 98 | 94 | 100 | 3.77 | T2 |
| NH12-77W | 12 | 77 | 18 | 181 | 77 | 167 | 167 | 5.53 | T3 |
| NH12-80W | 12 | 80 | 20 | 181 | 77 | 167 | 167 | 6.1 | T3 |
| NH12-92W | 12 | 92 | 22 | 181 | 77 | 167 | 167 | 6.2 | T10 |
| NH12-100W | 12 | 100 | 28 | 166 | 175 | 125 | 125 | 8.3 | T10 |
| NH12-120W | 12 | 120 | 30 | 165 | 125 | 175 | 175 | 8.6 | T10 |

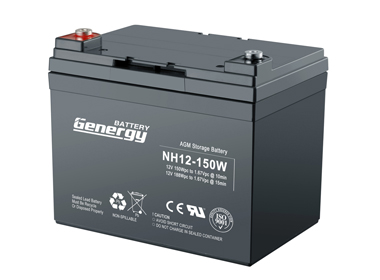

| NH12-150W | 12 | 150 | 33 | 196 | 131 | 162 | 167 | 10.2 | T11 |
|
Battery Model |
Volts | Capacity (W/cell) | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 15min rate 1.67V/cell |
Discharge 10hr rate 1.75V/cell |
L | W | H | TH | ||||
| NH12-160W | 12 | 160 | 40 | 197 | 165 | 170 | 170 | 13.3 | T12 |
| NH12-185W | 12 | 185 | 45 | 197 | 165 | 170 | 170 | 13.9 | T12 |
| NH12-250W | 12 | 250 | 60 | 229 | 139 | 210 | 215 | 18.4 | T12 |
| NH12-300W | 12 | 300 | 75 | 260 | 170 | 210 | 215 | 24.0 | T12 |

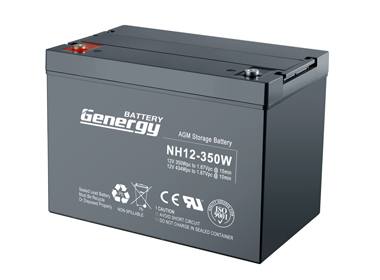

| NH12-350W | 12 | 350 | 87 | 304 | 175 | 210 | 215 | 28.7 | T12 |
| NH12-380W | 12 | 380 | 92 | 330 | 172 | 216 | 220 | 29.2 | T13 |

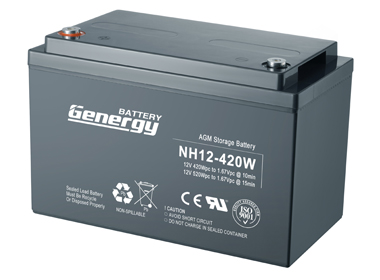

| NH12-420W | 12 | 420 | 110 | 330 | 172 | 216 | 220 | 32.3 | T13 |
| NH12-440W | 12 | 440 | 110 | 304 | 175 | 210 | 215 | 31.5 | T12 |
| NH12-475W | 12 | 475 | 130 | 350 | 172 | 213 | 218 | 35.7 | T13 |
| NH12-520W | 12 | 520 | 150 | 341 | 171 | 281 | 283 | 42.5 | T14 |
| NH12-600W | 12 | 600 | 170 | 522 | 240 | 218 | 224 | 55 | T13 |
| NH12-700W | 12 | 700 | 180 | 522 | 240 | 218 | 224 | 64.0 | T13 |
| NH12-800W | 12 | 800 | 235 | 521 | 269 | 221 | 226 | 73.3 | T14 |
| NFH12-400W | 12 | 400 | 100 | 395 | 110 | 286 | 286 | 32.1 | T14 |
| NFH12-590W | 12 | 590 | 150 | 561 | 125 | 316 | 316 | 52.0 | T14 |
| NFH12-700W | 12 | 700 | 180 | 561 | 125 | 316 | 316 | 56 | T14 |
