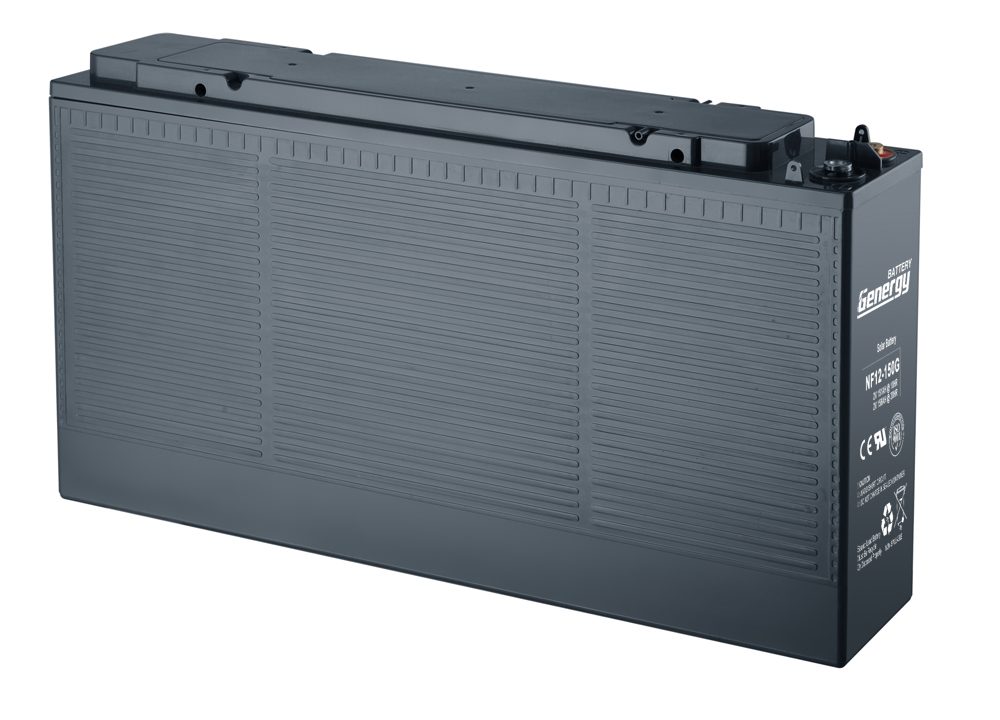

NFG series(Front Terminal)
Genergy NF-G series is designed for telecommunication UPS/EPS system with 12-year design life in float service. The battery is featured of high consistency, excellent performance and reliable standby service life
Renewable/Solar Applications
Home >
PRODUCT >
Renewable/Solar Applications
Key Features and Benefits
Applications
Product Specifications
Key Features
- Completed maintainance free
- Electrolyte will not stratify, no equalization charge required.
- Enhanced cycle life
-
Central gassing system and hinged front covers on all models
- Increase durability and deep cycle ability for heavy demand applications
- Low self-discharge
- Fully tank formed plates
- Low impurity electrolyte
- Spill proof / leak proof
Application
- Solar energy system
- Wind Energy System
- BTS system
- UPS/EPS
- Data Center
|
Battery Model |
Volts | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 20hr rate 1.75V/cell |
L | W | H | TH | ||||
| NF12-50G | 12 | 53 | 277 | 106 | 223 | 223 | 18.0 | T14 |
| NF12-80G | 12 | 84 | 563 | 115 | 188 | 188 | 27.3 | T14 |
| NF12-100G | 12 | 105 | 395 | 110 | 286 | 286 | 32.3 | T14 |
| NF12-105G | 12 | 111 | 507 | 110 | 223 | 238 | 32.5 | T14 |
| NF12-125G | 12 | 133 | 436 | 108 | 317 | 317 | 39.5 | T14 |
| NF12-150G | 12 | 158 | 522 | 110 | 287 | 287 | 43.5 | T14 |
| NF12-155G | 12 | 164 | 522 | 110 | 287 | 287 | 48.5 | T14 |
| NF12-180G | 12 | 192 | 560 | 125 | 317 | 317 | 57.0 | T14 |
| NF12-190G | 12 | 210 | 560 | 125 | 317 | 317 | 60.7 | T14 |
