NS Series (1.2Ah - 28Ah)
Genergy NS UPS Series is designed for standby use with 5-year design life in float service. The series battery is featured of high consistency, excellent performance and reliable standby service life. It is widely applied in UPS/EPS, medical equipment, emergency light and security system.
Standby Applications
Home >
PRODUCT >
Standby Applications
- 1
- 2
- 3
- 4
Key Features and Benefits
Applications
Product Specifications
Key Features and Benefits
- Low self-discharge
- Fully tank formed plates
- Low impurity electrolyte
- Spill proof / leak proof
- Multi-position usage
- ABS case and cover VO upon request
- Very high purity lead
Application
- UPS & EPS
- Power Utility
- Security Power Supply
- Electrical Toys
UPS Purpose
|
Battery Model |
Volts | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 20hr rate 1.75V/cell |
L | W | H | TH | ||||
| NS12-4.5 | 12 | 4.5 | 90 | 69.5 | 101 | 106 | 1.45 | T1/T2 |
| NS12-5 | 12 | 5 | 90 | 69.5 | 101 | 106 | 1.59 | T2 |
| NS12-6.5 | 12 | 6.5 | 151 | 65 | 95 | 99 | 2.00 | T2 |
| NS12-7 | 12 | 7.2 | 151 | 65 | 95 | 99 | 2.14 | T2 |
| NS12-7.5 | 12 | 7.5 | 151 | 65 | 95 | 99 | 2.22 | T2 |
| NS12-8 | 12 | 8 | 151 | 65 | 95 | 99 | 2.28 | T2 |
| NS12-9 | 12 | 9 | 151 | 65 | 95 | 99 | 2.44 | T2 |
| NS12-10 | 12 | 10 | 151 | 98 | 95 | 99 | 3.15 | T2 |
| NS12-12 | 12 | 12 | 151 | 97.5 | 95 | 100 | 3.45 | T2 |

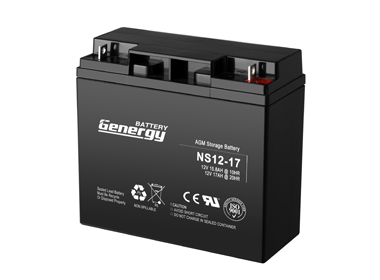

| NS12-17 | 12 | 17 | 181 | 77 | 166 | 166 | 5.20 | T3 |
| NS12-18 | 12 | 18 | 181 | 77 | 166 | 166 | 5.50 | T3 |
| NS12-24 | 12 | 24 | 166 | 126 | 175 | 175 | 8.2 | T3 |

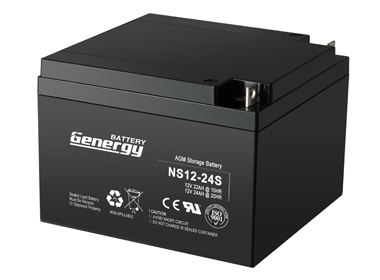

| NS12-24S | 12 | 24 | 175 | 166 | 126 | 126 | 7.50 | T4 /T10 |
| NS12-26 | 12 | 26 | 175 | 166 | 126 | 126 | 7.75 | T4 /T10 |
| NS12-28 | 12 | 28 | 166 | 126 | 175 | 175 | 8.55 | T3 |
| NS12-28S | 12 | 28 | 175 | 166 | 126 | 126 | 8.30 | T4 /T10 |
General Purpose
|
Battery Model |
Volts | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 20hr rate 1.75V/cell |
L | W | H | TH | ||||
| NS6-1.2 | 6 | 1.2 | 97 | 24 | 52 | 56 | 0.26 | T1 |
| NS6-3.2 | 6 | 3.2 | 134 | 34 | 59.5 | 65 | 0.61 | T1 |
| NS6-4 | 6 | 4 | 70 | 47 | 100 | 105 | 0.69 | T1 |
| NS6-4.2 | 6 | 4.2 | 70 | 47 | 100 | 105 | 0.71 | T1 |
| NS6-4.5 | 6 | 4.5 | 70 | 47 | 100 | 105 | 0.74 | T1 |
| NS6-5 | 6 | 5 | 70 | 47 | 100 | 105 | 0.80 | T1 |
| NS6-7 | 6 | 7 | 151 | 34.5 | 93.5 | 99 | 1.08 | T1 |
| NS6-7.2 | 6 | 7.2 | 151 | 34.5 | 93.5 | 99 | 1.11 | T1 |
| NS6-10 | 6 | 10 | 151 | 50 | 93.5 | 99 | 1.63 | T1 /T2 |
| NS6-12 | 6 | 12 | 151 | 50 | 93.5 | 99 | 1.78 | T1 /T2 |
| NS12-1.2 | 12 | 1.2 | 97.5 | 43.5 | 53 | 57 | 0.50 | T1 |
| NS12-2.3 | 12 | 2.4 | 179 | 35 | 61.5 | 67 | 0.89 | T1 |
| NS12-3.2 | 12 | 3.2 | 134.5 | 67 | 60 | 65 | 1.23 | T1 |
| NS12-4 | 12 | 4 | 89 | 69.5 | 101 | 106 | 1.39 | T1 /T2 |
| NS12-4.2 | 12 | 4.2 | 89 | 69.5 | 101 | 106 | 1.38 | T1 /T2 |
| NS12-7A | 12 | 7 | 151 | 65 | 95 | 99 | 2.07 | T2 |
| NS12-10A | 12 | 10 | 151 | 98 | 95 | 99 | 3.10 | T2 |
| NS12-12A | 12 | 12 | 151 | 97.5 | 95 | 100 | 3.33 | T2 |
| NS12-17A | 12 | 17 | 180 | 76 | 167 | 172 | 5.00 | T3/T10 |
