NL Series (2 Volt)
Genergy NL Series is designed for standby use with 15-year design life in float service. The series battery is featured of high consistency, excellent performance and reliable standby service life. It is widely applied in Telecoms, Power Utility, Renewables, UPS/EPS, and medical equipment.
Standby Applications
Home >
PRODUCT >
Standby Applications
- 1
- 2
- 3
- 4
Key Features and Benefits
Applications
Product Specifications
Key Features and Benefits
- Valve regulated maximum internal pressure 2.5 PSI
- Increase durability and deep cycle ability for heavy demand applications
- Low self-discharge
- Fully tank formed plates
- Low inpurity electrolyte
- Spill proof / leak proof
- Multi-position usage
- ABS case and cover VO upon request
- Very high purity lead
Application
- Telecommunications
- UPS & EPS
- Data center
- Solar Energy System
- Power Utility
|
Battery Model |
Volts | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 10hr rate 1.80V/cell |
L | W | H | TH | ||||
| NL2-100 | 2 | 100 | 171 | 72 | 205 | 223 | 5.9 | T13 |
| NL2-200 | 2 | 200 | 173 | 111 | 329 | 365 | 13.0 | T15 |
| NL2-300 | 2 | 300 | 171 | 151 | 330 | 366 | 18.3 | T15 |
| NL2-400 | 2 | 400 | 211 | 176 | 329 | 367 | 25.2 | T15 |

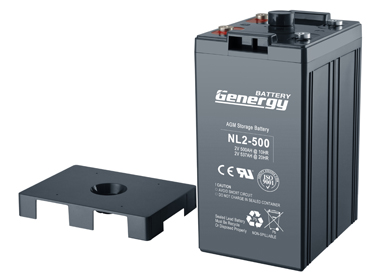

| NL2-500 | 2 | 500 | 241 | 172 | 330 | 364 | 31.6 | T15 |
| NL2-600 | 2 | 600 | 285 | 171 | 312 | 342 | 36.1 | T15 |
| NL2-800 | 2 | 800 | 383 | 171 | 312 | 342 | 51.4 | T15 |
| NL2-1000 | 2 | 1000 | 471 | 171 | 312 | 342 | 61.2 | T15 |
| NL2-1500 | 2 | 1500 | 355 | 337 | 312 | 342 | 91.7 | T15 |
| NL2-2000 | 2 | 2000 | 476 | 337 | 312 | 365 | 121.5 | T15 |
| NL2-3000 | 2 | 3000 | 696 | 340 | 312 | 365 | 185.3 | T15 |
