EB Series (4.5Ah - 250Ah)
Genergy EB series is designed specially for European Standard. The series battery is featured of high consistency, excellent performance and reliable standby service life. It is widely applied in float service, UPS/EPS, medical equipment, telecom, photovoltaic, control system and security system.
Standby Applications
Home >
PRODUCT >
Standby Applications
Key Features and Benefits
Applications
Product Specifications
Key Features and Benefits
- Increase durability and deep cycle ability for heavy demand applications
- Low self-discharge
- Fully tank formed plates
- Low impurity electrolyte
- Spill proof / leak proof
- Multi-position usage
- ABS case and cover VO upon request
- Very high purity lead
Application
- UPS & EPS
- Power Utility
- Telecommunications
- Security Power Supply
|
Battery Model |
Volts | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 10hr rate 1.80V/cell |
L | W | H | TH | ||||
| EB12-4.5 | 12 | 4.5 | 89 | 69 | 101 | 106 | 1.51 | T1 |
| EB12-5 | 12 | 5 | 89 | 69 | 101 | 106 | 1.59 | T1 |
| EB12-7 | 12 | 7 | 151 | 65 | 95 | 99 | 2.14 | T2 |
| EB12-8.5 | 12 | 8.5 | 151 | 65 | 95 | 99 | 2.44 | T2 |
| EB12-12 | 12 | 12 | 151 | 98 | 95 | 99 | 3.65 | T2 |
| EB12-17 | 12 | 17 | 180 | 76 | 167 | 167 | 5.6 | T3 |
| EB12-24 | 12 | 24 | 166 | 175 | 125 | 125 | 7.8 | T4/T10 |
| EB12-26 | 12 | 26 | 166 | 175 | 125 | 125 | 8.3 | T4/T10 |
| EB12-28 | 12 | 28 | 165 | 125 | 174 | 174 | 8.4 | T4/T10 |
| EB12-33 | 12 | 33 | 197 | 131 | 161 | 168 | 10.0 | T11 |

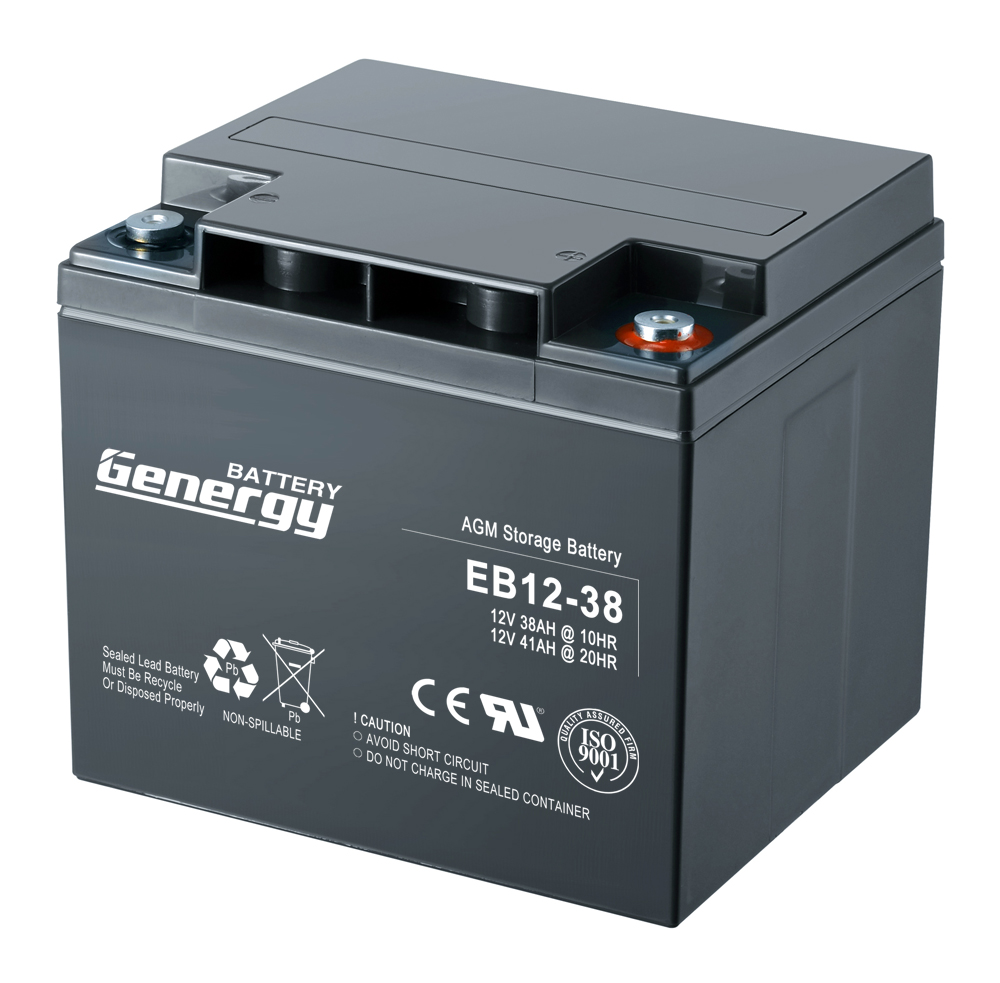

| EB12-38 | 12 | 38 | 197 | 166 | 176 | 176 | 12.1 | T12 |
| EB12-40 | 12 | 40 | 197 | 166 | 176 | 176 | 13.2 | T12 |
| EB12-45 | 12 | 45 | 197 | 166 | 176 | 176 | 14.0 | T12 |
| EB12-50 | 12 | 50 | 229 | 139 | 210 | 215 | 16.0 | T12 |
| EB12-55 | 12 | 55 | 229 | 139 | 210 | 215 | 16.5 | T12 |
| EB12-65 | 12 | 65 | 327 | 172 | 173 | 178 | 20.0 | T13 |
| EB12-70 | 12 | 70 | 260 | 169 | 210 | 215 | 22.5 | T12 |
| EB12-75 | 12 | 75 | 350 | 170 | 180 | 180 | 22.1 | T12 |
| EB12-80 | 12 | 80 | 260 | 169 | 210 | 215 | 23.5 | T12 |
| EB12-90 | 12 | 90 | 327 | 172 | 216 | 221 | 27.0 | T13 |
| EB12-100 | 12 | 100 | 327 | 172 | 216 | 221 | 30.5 | T13 |
| EB12-150 | 12 | 150 | 485 | 170 | 240 | 240 | 41.7 | T13 |
| EB12-200 | 12 | 200 | 522 | 240 | 219 | 224 | 59.7 | T13 |
| EB12-230 | 13 | 230 | 522 | 240 | 219 | 224 | 64.5 | T13 |
| EB12-250 | 12 | 250 | 522 | 269 | 221 | 226 | 70.5 | T14 |
